INTRODUCTION |

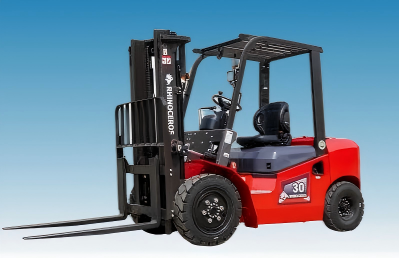

The CPC(D)30 Forklift offers high reliability with a durable gearbox, Stage 4-compliant engine, and efficient hydraulic system. It features enhanced safety with optimized hydraulic components and a robust brake hub. The precise design ensures flexibility in tight spaces, while comfortable operation is provided by a small steering wheel, low-torque steering gear, and cushioned seats for reduced fatigue.
•Stage 4 compliant engine
•Efficient hydraulic system
•Optimized hydraulic components
•Robust brake hub
•Precise design
•Flexible in tight spaces
•Low-torque steering gear
•Cushioned seats
Key Specifications |
| CPC(D)30 | ||
|---|---|---|
| Maximum Lifting Height(during operation) | 4230 mm | 166.5 in |
| Rated load | 3000 kg | 6614 lb |
| Minimum Turning Radius | 2610 mm | 103 in |
| Overall Length (without forks) | 2880 mm | 113.4 in |
| Engine Model No. | 4D29 | |
| Operating Weight | 4120 kg | 9084 lb |
| Max. Travel Speed | 19 km/h | 11.8 mph |
Features |
|

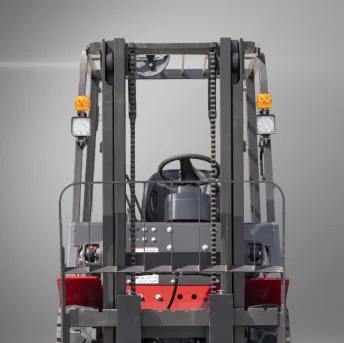

Visibility & LED Lighting
Optimization of the gantry structure to enhance visibility.LED headlights are energy-saving and eye-catching.
|
Safety
Optimize the water tank and heat dissipation channels to improve the service life of components.
|

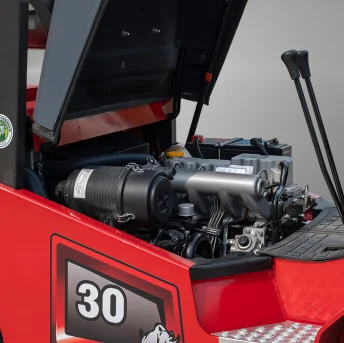

Maintenance & Accessibility
Hood - The hood opening angle reaches 80°, further increasing the maintenance space.
|
Comfort & Ergonomics
Human-computer interaction feedback reduces driver fatigue intensity. A small-diameter steering wheel reduc...
|
 |
 |
 |
 |
