Description

Product Description

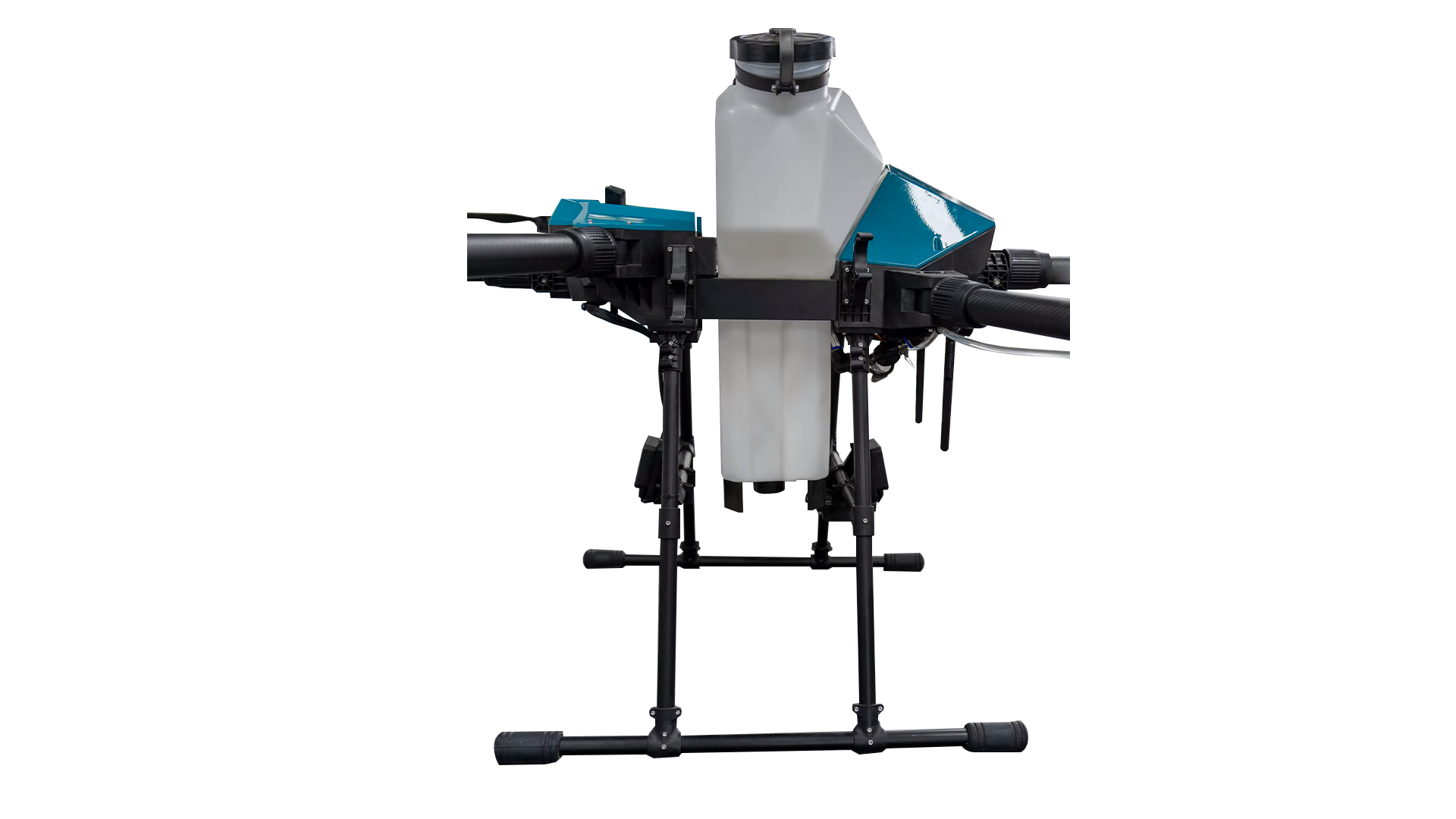

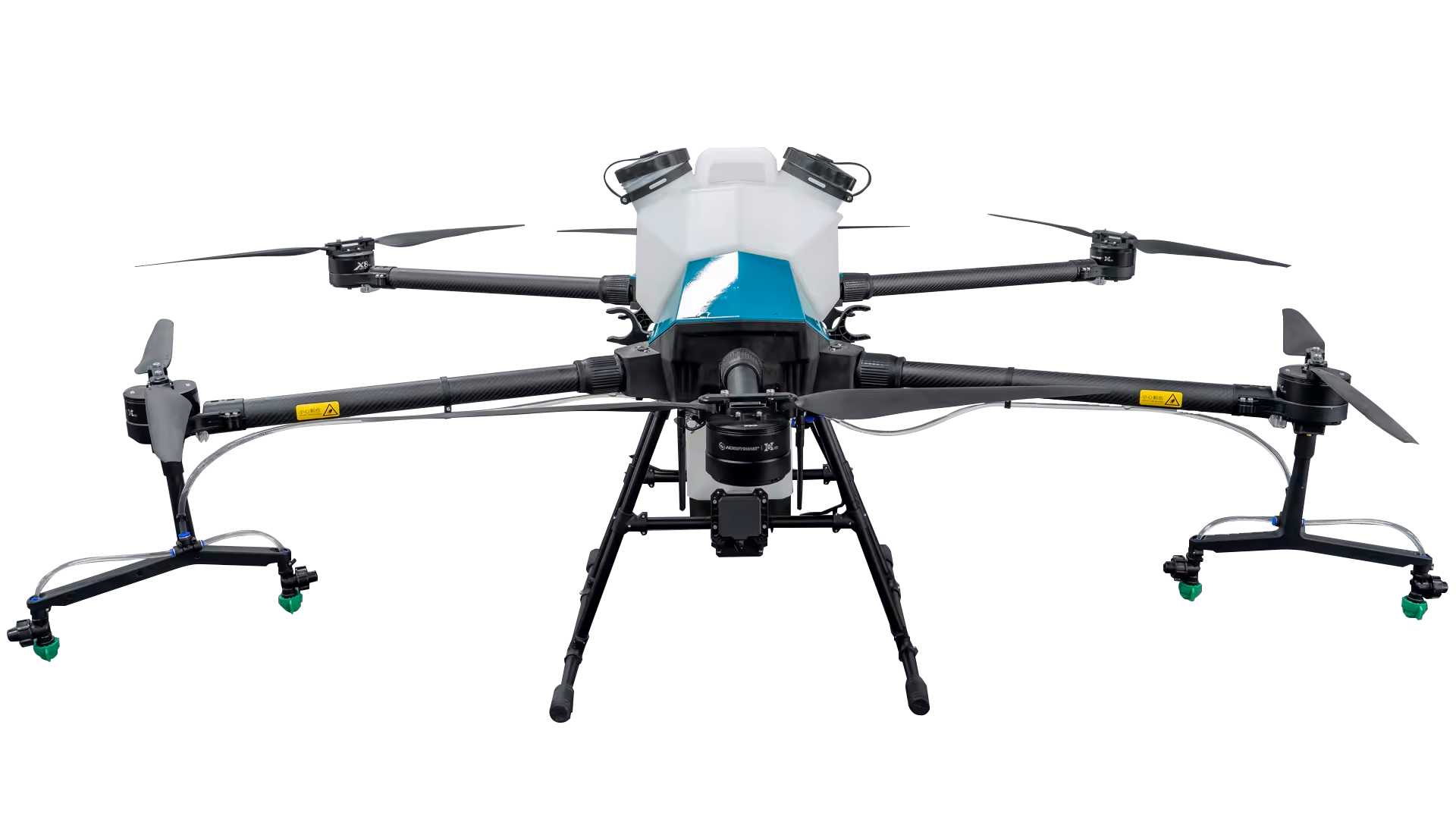

The E16 agricultural drone is the latest in ESER Drones third-generation product range, designed for modern agricultural operations with advanced features and robust construction. The 16L pesticide tank balances capacity and efficiency, suitable for medium-sized fields. It reduces the frequency of refills and provides continuous spraying for optimal coverage and protection.

Technical Specifications

We provide E16 Agricultural Drone, the main technical parameters are as follows

E16 Four-axis layout Main Parameters
Aircraft Axle Distance	1090mm	Wind Resistance Level	5-6 Levels
Cruising Speed	5-10m/s	Endurance Time	7-18min
Empty Machine Weight	14.1kg	Operating Temperature	-15℃~55℃
Take-off Weight	35.95kg	Spray Range	6-8m
Spray Height	1.5-2m	Nozzle Type	Pressure
Water Tank Capacity	16L	Battery Configuration	22000Mah（12S）
Spreading Capacity	/	Charging Time	13-20min
Multiple Flight Mode Options: Full Autonomous Operation Mode, A-B Point Operation Mode, and Manual Operation Mode.

E16 Six-axis layout Main Parameters
Aircraft Axle Distance	1090mm	Wind Resistance Level	5-6 Levels
Cruising Speed	5-10m/s	Endurance Time	8-22min
Empty Machine Weight	34.5kg	Operating Temperature	-15℃~55℃
Take-off Weight	60.5kg	Spray Range	6-8m
Spray Height	1.5-2m	Nozzle Type	Pressure
Water Tank Capacity	16L	Battery Configuration	22000Mah（12S）
Spreading Capacity	/	Charging Time	15-20min
Multiple Flight Mode Options: Full Autonomous Operation Mode, A-B Point Operation Mode, and Manual Operation Mode.

Equipment Features

1. Durable Construction with High-Performance Materials
Build: Crafted from carbon fiber and aviation aluminum, ensuring longevity
Design: Foldable truss structure for convenient transport and storage.

2. Advanced Remote Control and Extended Endurance
Controller: Features a 5.5-inch high-brightness display and advanced APP control.
Operation: Provides smooth control with over 7 hours of endurance.

3. Enhanced Monitoring and Safety Mechanisms
Real-Time Monitoring: Equipped with an FPV HD camera.
Obstacle Detection: Front and rear radars for effective obstacle avoidance.

4. Smart Navigation and Safe Return
Autonomous Flight: Intelligent path planning for automated operations.
Efficiency: Accurately predicts pesticide usage.
Return Functionality: Multiple return modes for secure landings.

5. High-Pressure Spraying System
Coverage Area: Can spray 1.3-2.6 acres in about 12 minutes.
Tank Capacity: The 16L tank optimizes efficiency and minimizes refills, perfect for medium fields.

6. Resilient and Protective Design
Protection: IP6X rating for dust, water, and corrosion resistance.
Core Components: Triple-protected for reliable performance.

7. User-Friendly Operation
Ease of Use: Simple to operate, suitable for solo operators.
Additional Info: Visit our Agriculture Solutions page for more details.

Application scenario

Farmland Inspection, Crop Spraying, Rice Seeding, Irrigation Management, Agricultural Product Transportation

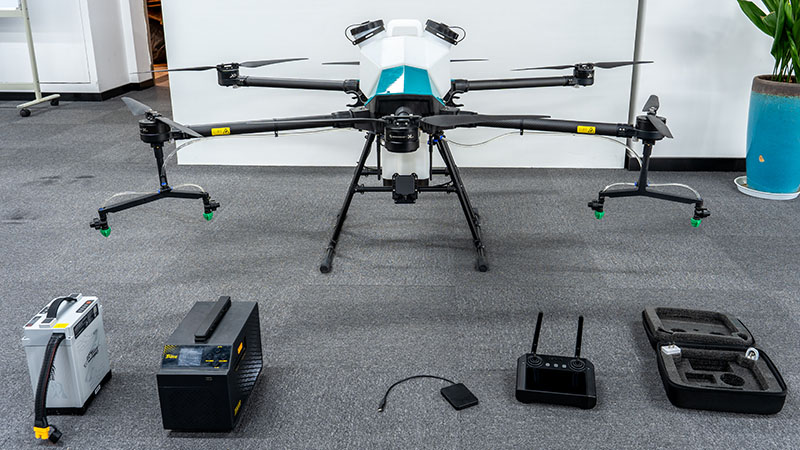

Optional accessories for the machine

Optional Accessories	Upgrade Components	Consumable Parts
Spare Battery	Terrain Radar	Motor
Charger	Obstacle Sensors	Water Pump
Propeller Guard	Upgraded Battery	Propellers
Enhanced Propellers	Upgraded Materials	Landing Gear
Low-Noise Propellers	High-Performance Motor	Body Shell
	Enhanced Flight Control System	Arm Components
	GPS Module	Nozzles and Spray Rods
	Software Upgrade
