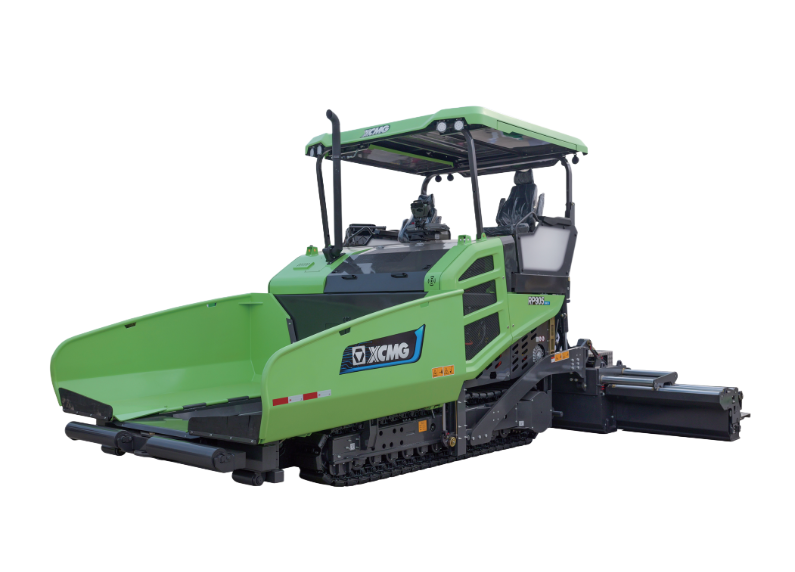

RP905HEV paver utlizes a 150k range extender and a 49. 5SkWh power batery to form a power system assembly,ensuringthe high powerrequirements of construction operations are met It employs a domestic controller and 10. The machine is equipped with a 1inch LCD screenltrasonic material levelsensing control, and electronic automatic leveling. It has a singlevibration eccentric vbration and DC electric heating hydrauictelescopic screed with a four-support cylinder suspension structure,hydrauic height adjustment and arch adjustment, The driving lef and right areindependently driven, and constant speed automatic control technology is adopted.
| Item |
Unit |
Parameter |
| Basic Paving Width |
m |
3.0-6.0 |
| Max. Paving Width |
m |
9 |
| Max. Paving Thickness |
mm |
300 |
| Max. Paving Speed |
m/min |
25 |
| Max. Working Speed |
km/h |
4 |
| Max. Productivity |
t/h |
1000 |
| Overall Dimension |
mm |
7100×4000×3200 |
| Total Weight |
t |
24 |
