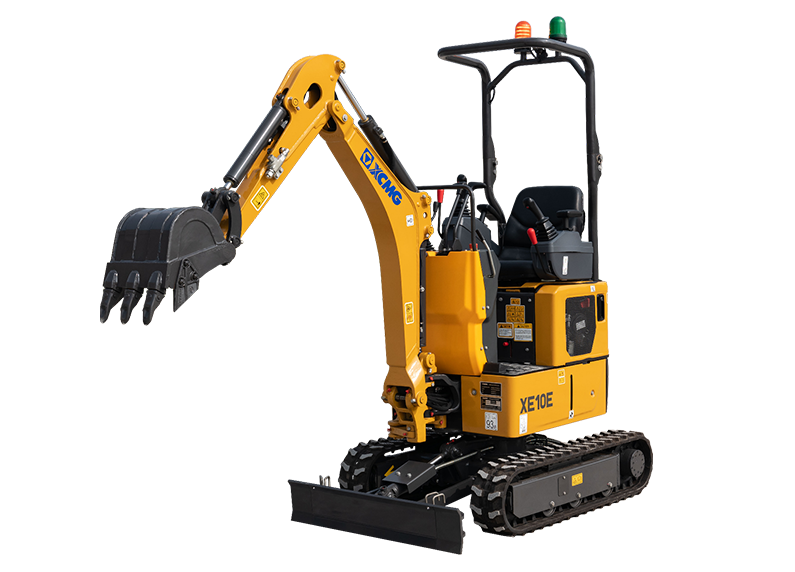

The XE10E hydrauic excavator is equipped with a 9.kW high-power engine, which is powerflul and powerful The whole machine adopts a compactshort-tal design and an extremely narrow body, which makes easy to work in narrow spaces. Itis equipped with a high-power hydraulic ol radiatorwith strong heat dissipation capacity. Itis equipped with a 4.3-inch instrument and can swing the armrest box left and right, which is comfortable forpeople and machines. With muti-functional working accessories, it can complete tasks such as excavation, loading, leveling, ditching, and crushing. Itis widely used in the fields of house and courtyard repair, garden renovation, etc.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
1200 |
| Rated power |
kW/rpm |
9.8/2300 |
| Engine model |
- |
Kubota D782 |
| Bucket capacity |
m³ |
0.022 |
| Emission standard |
- |
EU stage V |
| Maximum torque/speed |
N.m |
44.5/1800 |
| Displacement |
L |
0.778 |
| Travel speed |
km/h |
3.7/2.1 |
| Swing speed |
r/min |
9 |
| Bucket digging force |
kN |
11.5 |
| Arm digging force |
kN |
6.6 |
