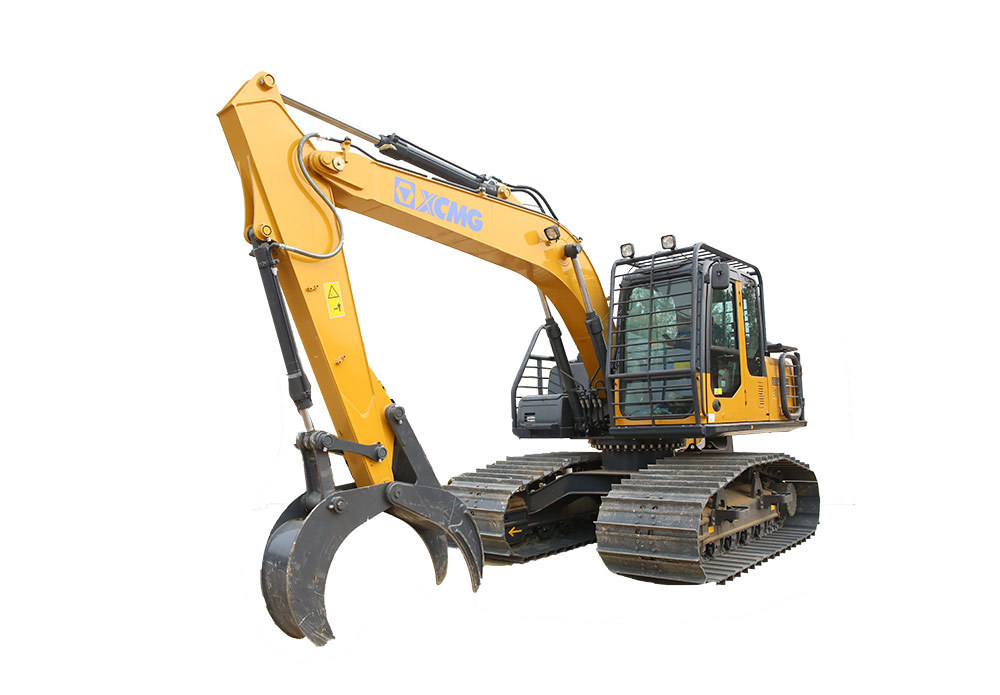

The XE135F boasts an environmentaly friendly and energy-saving power system with an imported engine meeting Tier ll emission standardsensuring high relabiity, low fuel consumption, and easy mantenance Is eficent hydraulic system, featuring a world-renowned brand main vave andJouble- pump constant power negative-ftow system, maximizes power absoption and enhances compound operation, while the instantaneous boostfunction ensures adaptabity to varied working condtions. The advanced cooling system optimizes machine effciency under diverse operatingcondtons. Addtonaly.exclusive guards for the foresty cab and body, along with dust preventon nets for the engine and radiator, ensure protectionrom extemal elements, making the XE135F ideal for forestry operations, including gathering, stacking. loading, and unloading, with a focus on high efficiency and fuel economy.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
17500 |
| Rated power |
kW/rpm |
72.7 |
| Engine model |
- |
ISUZU BB-4BG1TRP |
| Bucket capacity |
m³ |
/ |
| Emission standard |
- |
National Stage II |
| Maximum torque/speed |
N.m |
337.6/1600 |
| Displacement |
L |
4.329 |
| Travel speed |
km/h |
4.4/2.6 |
| Swing speed |
r/min |
12.1 |
| Bucket digging force |
kN |
/ |
| Arm digging force |
kN |
/ |
