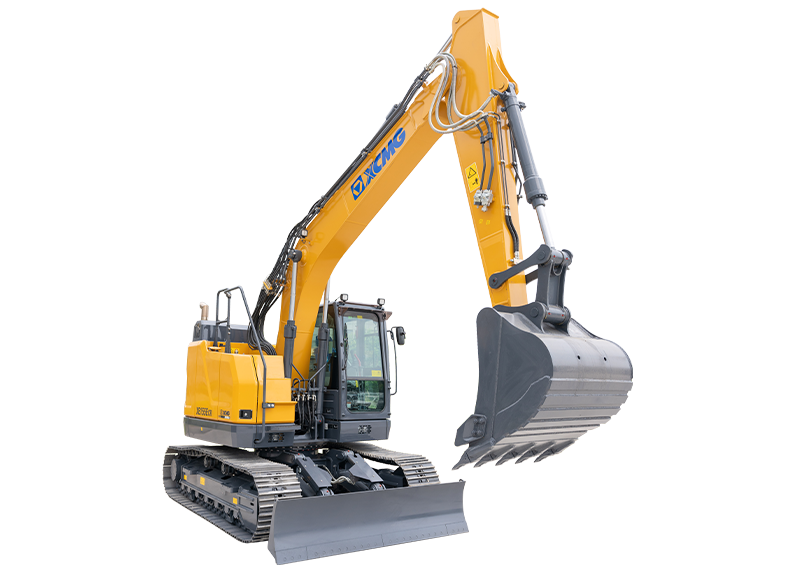

With Cummins engines, Kawasaki KPM hydraulic pumps, main control valve and swing motor, and high-quality travel motors, the XE155ECR guarantees the best performance. Oversized cylinders in combination with long-life reinforced pins, polymer shims and bushings ensure best performance with unchanged durability. Multiple boom and arm sizes together with special configurations are available to efficiently carry out any task your business requires. Easily accessible highly efficient filters and cleaners that remove all contamination from the job site. The CAE-designed X-shape undercarriage enables even weight distribution, increases stability and durability, and prevents damage from rocks and debris.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
16600 |
| Rated power |
kW/rpm |
90 |
| Engine model |
- |
Cummins B4.5 |
| Bucket capacity |
m³ |
0.6 |
| Emission standard |
- |
Euro V |
| Maximum torque/speed |
N.m |
500/1500 |
| Displacement |
L |
4.5 |
| Travel speed |
km/h |
4.7/2.9 |
| Swing speed |
r/min |
11.3 |
| Bucket digging force |
kN |
106.9 |
| Arm digging force |
kN |
73.4 |
