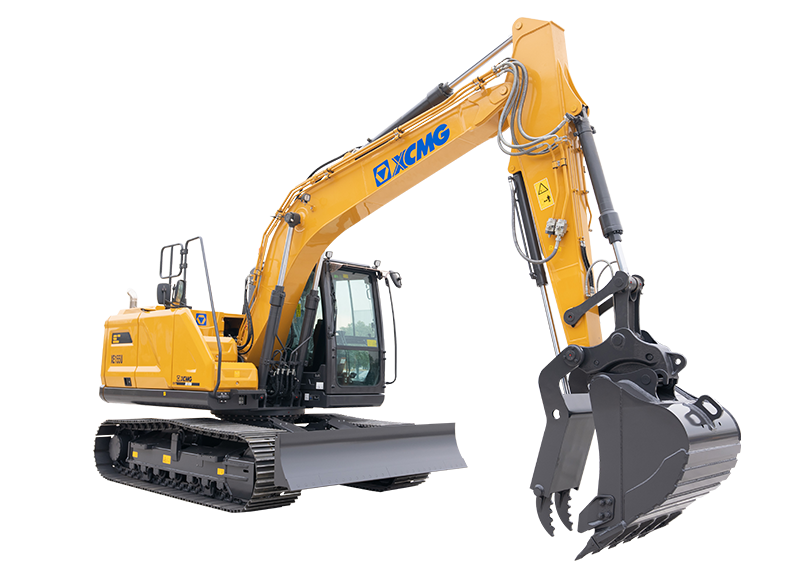

The newly engineered XE155U builds on its reputation as one of the most sold and appreciated mid-size excavators of XCMG. All systems have been designed based on the harmonious matching of sufficient power, hydraulic flow, versatility, low fuel consumption, to serve various applications in utility, landscaping, construction, etc.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
15900 |
| Rated power |
kW/rpm |
90 |
| Engine model |
- |
Cummins B4.5 |
| Bucket capacity |
m³ |
0.6 |
| Emission standard |
- |
Tier 4 Final |
| Maximum torque/speed |
N.m |
500/1500 |
| Displacement |
L |
4.5 |
| Travel speed |
km/h |
4.7/2.9 |
| Swing speed |
r/min |
11.3 |
| Bucket digging force |
kN |
107 |
| Arm digging force |
kN |
80 |
