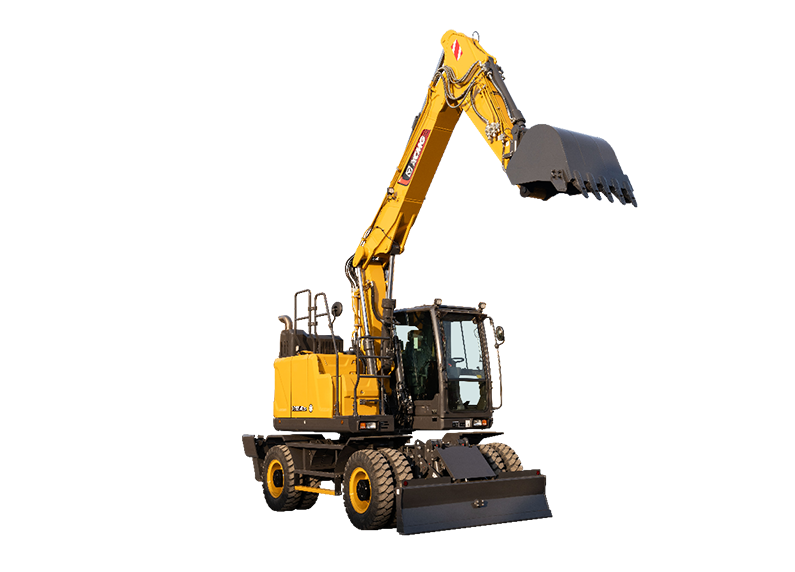

XE155WECR is XCMG's fist 15-ton short tal wheel hydraulic excavator. It features XCMG family -style exterior design, compact layout, 175omm tailswing radius, and 260omm short wheelbase It has a customized tool confuence function and can be equipped with mutifunctional accessories suchas hydrauic wrists The instalation dimensions of the buldozer and outriggers are interchangeable, and their installation positions can be determinedaccording to different needs and working conditions. It is widely used in municipal gardening, road maintenance, pipeline laying,and earthworktransportation.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
17900 |
| Rated power |
kW/rpm |
115/2000 |
| Engine model |
- |
Cummins B4.5 |
| Bucket capacity |
m³ |
0.6 |
| Emission standard |
- |
EU stage V |
| Maximum torque/speed |
N.m |
712/1200 |
| Displacement |
L |
4.5 |
| Travel speed |
km/h |
30.58 |
| Swing speed |
r/min |
9 |
| Bucket digging force |
kN |
100 |
| Arm digging force |
kN |
80 |
