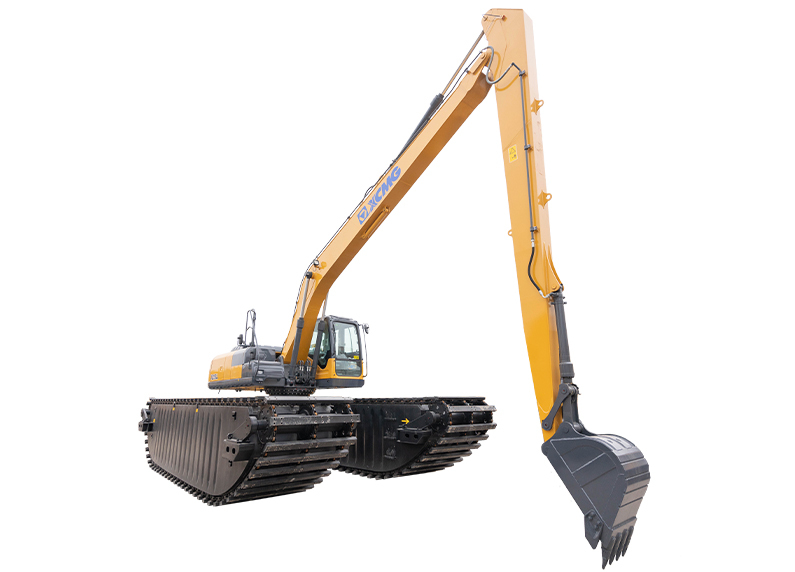

Adopting XCMG's proprietary matching technology, the operation efficiency is higher, the fuel consumption is smaller, and the oil effciency ratio isahead of the same tonnage model at home and abroad. After continuous optimization and improvement of the hydraulic system, the handingperformance is further enhanced, the han-dling is more precise, and the excavation and loading performance is beftter.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
34900 |
| Rated power |
kW/rpm |
128.5/2100 |
| Engine model |
- |
ISUZU CC-6BG1TRP |
| Bucket capacity |
m³ |
0.4 |
| Emission standard |
- |
National Stage II |
| Maximum torque/speed |
N.m |
637.9/1800 |
| Displacement |
L |
6.494 |
| Travel speed |
km/h |
3.1/1.8 |
| Swing speed |
r/min |
11.8 |
| Bucket digging force |
kN |
78.7 |
| Arm digging force |
kN |
40 |
