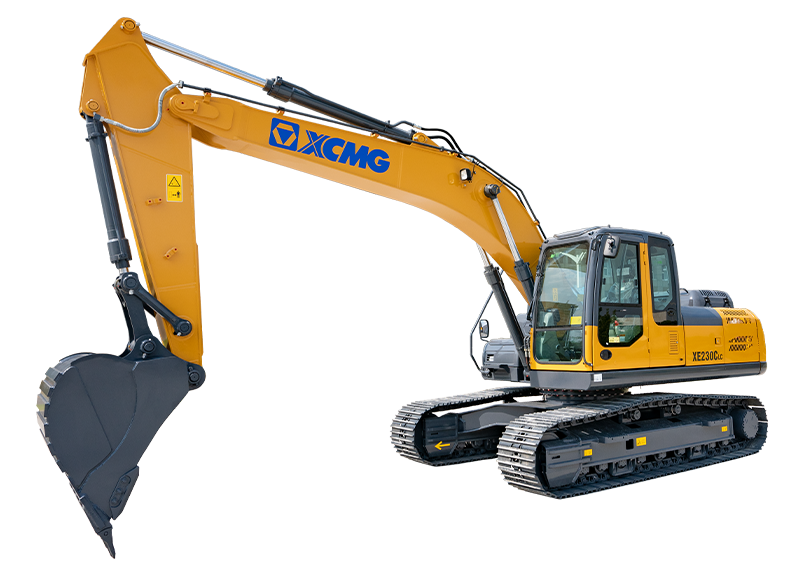

With imported 128.5kW high-powerengine and XCMG exclusive technology, XE230CLC fealures low speed and high torque, high-pressure injection.stronger power and better fuel economy New high-effciency main pump is fuly upgraded. ts displacementis 7% higher than the previous generationThe fuel efficiency ratio of XE230C is ahead of other models in its tonnage class. XE230CLC, with an L-shaped extended chassis used, ischaracterized y good peration stabity. With strengthened wortking device and high-capacity rock bucket, XE230CLC is used for small and medium-mines, irigation and water conservancy. river dredging and municipal construction, realizing diferent operations such as digging. crushing. anddismantling.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
23000 |
| Rated power |
kW/rpm |
128.5 |
| Engine model |
- |
ISUZU CC-6BG1TRP |
| Bucket capacity |
m³ |
1 |
| Emission standard |
- |
National Stage II |
| Maximum torque/speed |
N.m |
637.9/1800 |
| Displacement |
L |
6.494 |
| Travel speed |
km/h |
5.5/3.3 |
| Swing speed |
r/min |
13.2 |
| Bucket digging force |
kN |
149 |
| Arm digging force |
kN |
111 |
