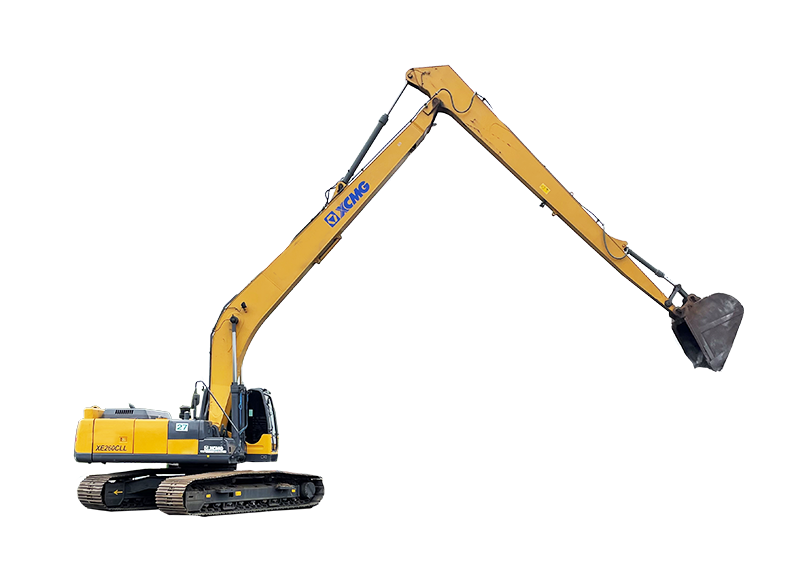

The maximum excavation radius is 18 meters, which is widely used in river dredging, bank protection, slope and subway construction, which areestricted by the ground environment.
More power, lower oi consumption, stronger operating performance, which can be widely used in irigation and water conservancy, river dredgingmunicipal construction and smal mine construction. Itcan realize diferent operating requirements such as excavation. crushing. demolition, andfurther enhance the adaptability to working conditions.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
28300 |
| Rated power |
kW/rpm |
139.89/2100 |
| Engine model |
- |
XCMG SC7H |
| Bucket capacity |
m³ |
0.4 |
| Emission standard |
- |
National Stage Ⅲ |
| Maximum torque/speed |
N.m |
702/1800 |
| Displacement |
L |
6.494 |
| Travel speed |
km/h |
5.5/3.3 |
| Swing speed |
r/min |
10.6 |
| Bucket digging force |
kN |
85 |
| Arm digging force |
kN |
41.3 |
