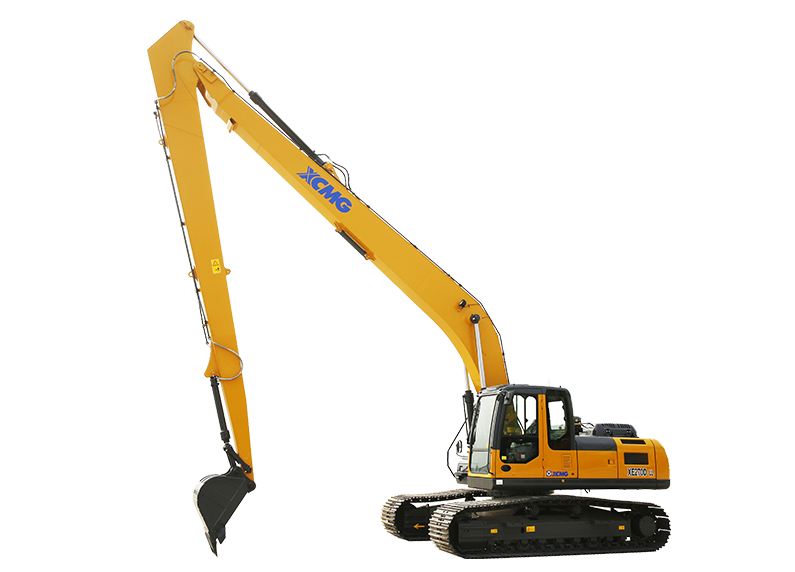

XE270DLL hydraulic excavator has a maximum digging radius of 18 meters and is widely used in working conditions restricted by ground environmentsuch as river dredging, bank protection, slope construction and subway construction
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
28300 |
| Rated power |
kW/rpm |
150 |
| Engine model |
- |
Cummins QSB7 |
| Bucket capacity |
m³ |
0.4 |
| Emission standard |
- |
National Stage Ⅲ |
| Maximum torque/speed |
N.m |
825/1250 |
| Displacement |
L |
6.7 |
| Travel speed |
km/h |
6.1/3.8 |
| Swing speed |
r/min |
11.4 |
| Bucket digging force |
kN |
185 |
| Arm digging force |
kN |
129 |
