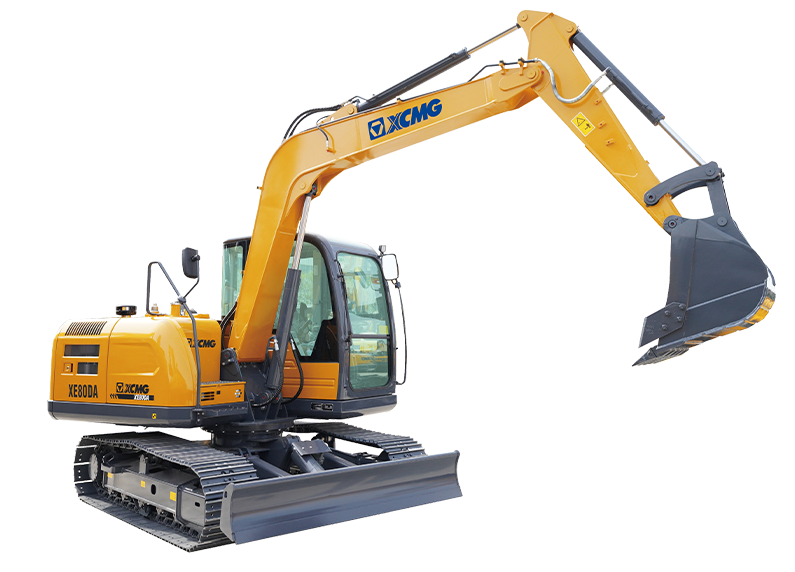

With Yanmar engine, XE80DA has sufficient low-speed torque reserves, strong power, good fuel economy, low noise and low vibration. Wih the largedisplacement electronically controlled main pump. the whole ol consumption is low. It is easiy capable of heay-duty excavation, breaking and otherharsh working conditions ith strengthened working device, the service life is increased by more than 15%. The bucket capacity is increased, whichimproves the excavation efficiency Increased wear-resistant of plate material increases the service ife of the bucket by more than 10%. The high-torque automatic two-speed moor can automatically swrich the walking gear accordng to the driving resistance, the walking operation effciency s
higher.
| Item |
Unit |
Parameter |
| Operating weight |
Kg |
7730 |
| Rated power |
kW/rpm |
46.3 |
| Engine model |
- |
Yanmar 4TNV98 |
| Bucket capacity |
m³ |
0.35 |
| Emission standard |
- |
National Stage III |
| Maximum torque/speed |
N.m |
239.1/1650 |
| Displacement |
L |
3.319 |
| Travel speed |
km/h |
5.0/2.7 |
| Swing speed |
r/min |
11 |
| Bucket digging force |
kN |
57 |
| Arm digging force |
kN |
38 |
