Description

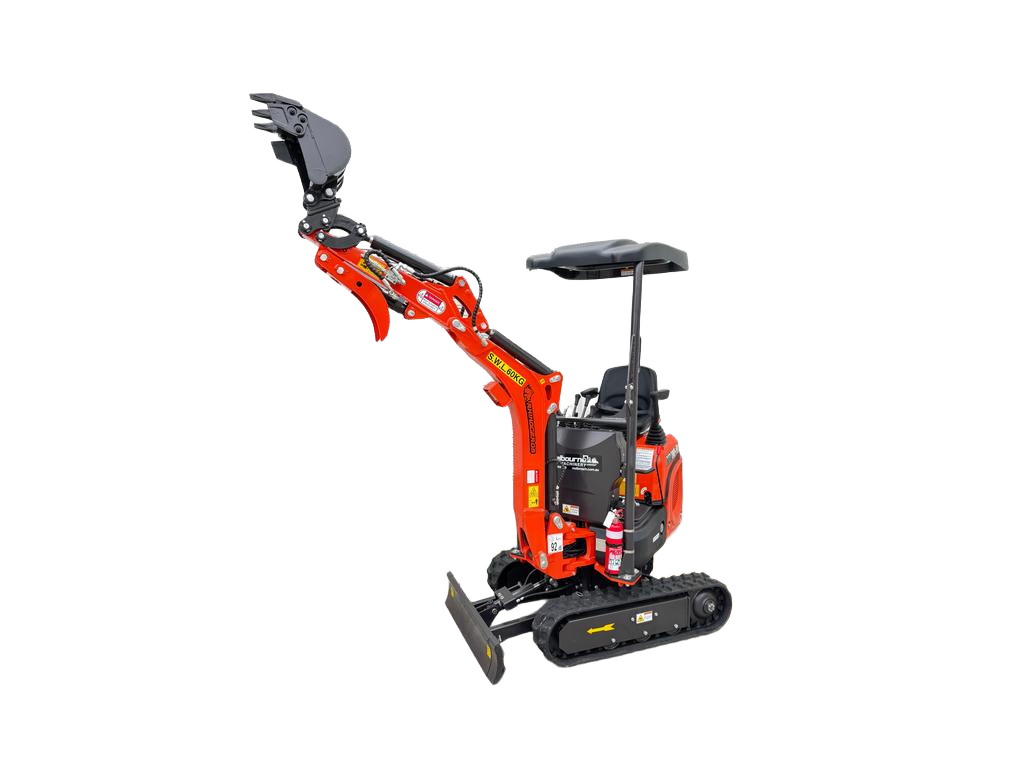

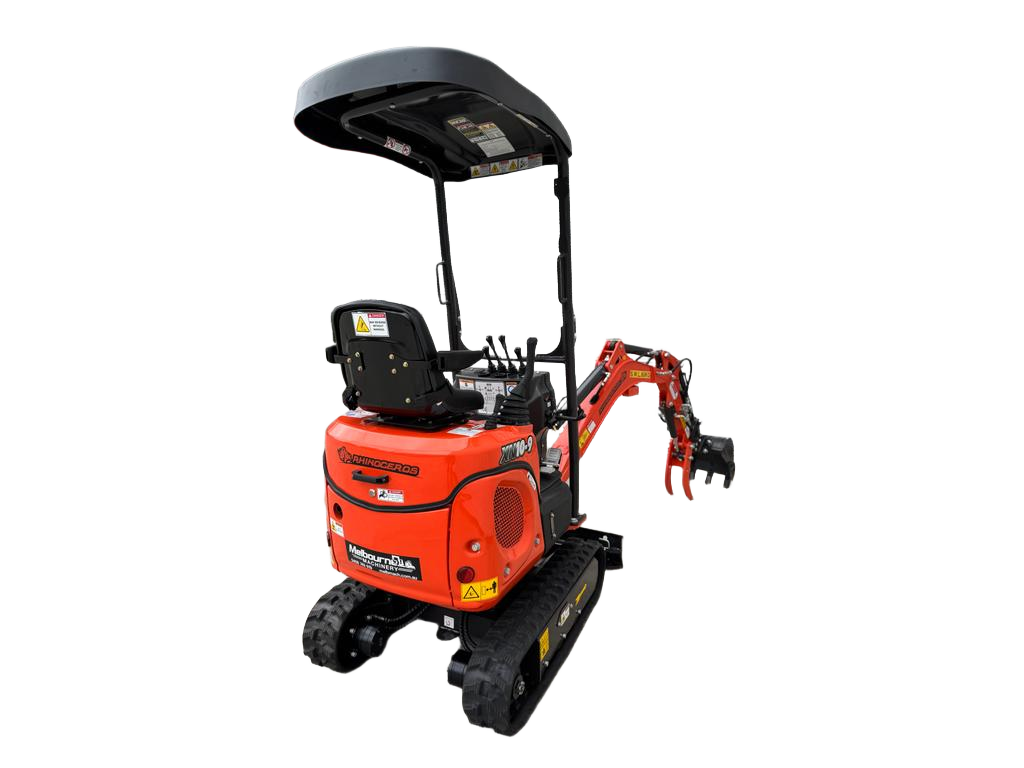

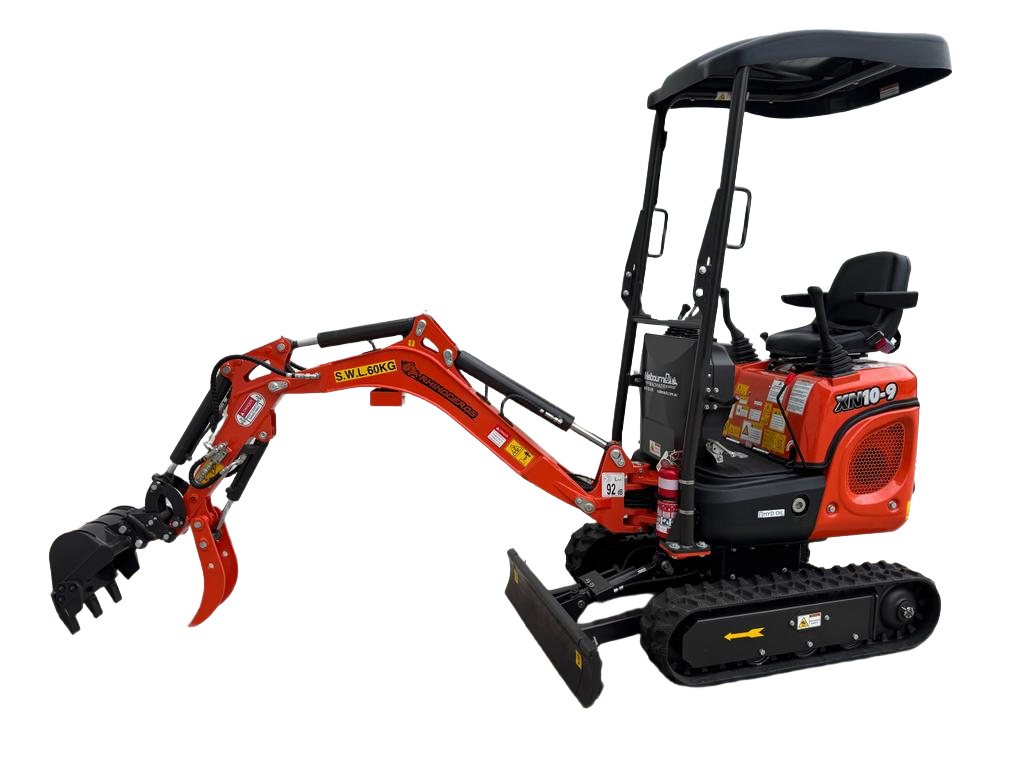

Introducing the 2026 New Model XN10-9. This is the upgraded version of the XN10-8 with the same compact versatility but including THESE EXTRAS AS STANDARD:

-Upside-down boom for cylinder protection
-Foot rests/pedals that fold away
-3-way valve and quick couplers on the boom arm
-larger AUX line for higher flow
-Folding foot pedals
-300mm GP Dig Bucket included with the attachment package

Key Features:
-Pilot Control Joysticks
-Swing Boom: Allows for flexible digging operations, especially in confined spaces.
-Expanding Tracks: Adjustable track width from 940mm down to 800mm provides stability on uneven terrains and accessibility through narrow passages.
-3 track rollers for added stability and to reduce the chance of throwing a track
-Hydraulic Thumb foot pedal operated and fitted as standard
-Safety Features: Equipped with a battery isolator and safety lock to ensure secure operation.

Specifications

Engine Type	Single-cylinder diesel engine (Kubota/Changchai/Cupo brands optional)
Rated Power	7-10.2KW
Maximum Digging Depth	1320-1568mm
Maximum Digging Height	2490-2646mm
Maximum Digging Radius	2400-3136mm
Rubber Track Width	180mm
Rated Travel Speed	1.5km/h
Main Pump Model	CBK-F6.8
