PARAMETERS |

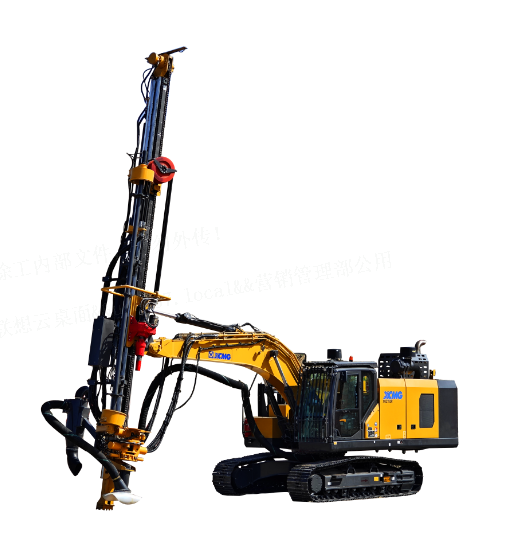

| Item | Unit | XQZ152R | |
| Drilling Parameters |
Driling diameter | mm | 90-165 |
| Total length of the drll pipe | m | 35 | |
| Dil rod specs | mm | ø102/ø89/ø76 | |
| Dil rod qty | / | 6+1 | |
| Engine | Model | / | (Cummins)L9CSIV394C |
| Rated power | kW | 294 | |
| Max.torque | N.m | 1800 | |
| Air compressor | Model | / | Airman Two-stage Screw Air Compressor |
| Rated air flow | m/min3 | 22.5 | |
| Max.air pressure | bar | 20 | |
| Hydraulic System | e otwan Pump | MPa | 34 |
| Main Pump Flow | L/min | 270+270 | |
| Hydraulic Oil Tank Capacity | L | 240 | |
| Electrical System | Voltage | V | 24 |
| Battery | / | 2×12V,180Ah | |
| Dust Collecting System |
Filtering area | m² | 31 |
| Feeding Device |
Feeding pattern | / | Motor+Chain |
| Feeding stroke | mm | 5550 | |
| Max.pling force | kN | 50 | |
| Max.feeding force | kN | 40 | |
| Max.feeding speed | m/s | 0.9 | |
| Rotary Device | Max.torque | Nm | 4000 |
| Max.speed | rpm | 200 | |
| Chassis | Max.travelng speed | km/h | 5.6 |
| Max.climbing angle | o | 25 | |
| Track shoe width | mm | 600 | |
| Cab | Noise limit | dB | ≤85 |
| Safety certification | / | FOPS | |
| A / C | / | Standard cooling and heating | |
| Seat | I | Adjustable/Seat heating | |
| Transport Dimensions (L×W×HO | mm | 17850×3142×3500 | |
| Total Weignt(Standard Configuration) | kg | 28200 | |
